JVC KW-Z1000W

General Features:

• digital multimedia receiver with AM/FM tuner (does not play CDs)

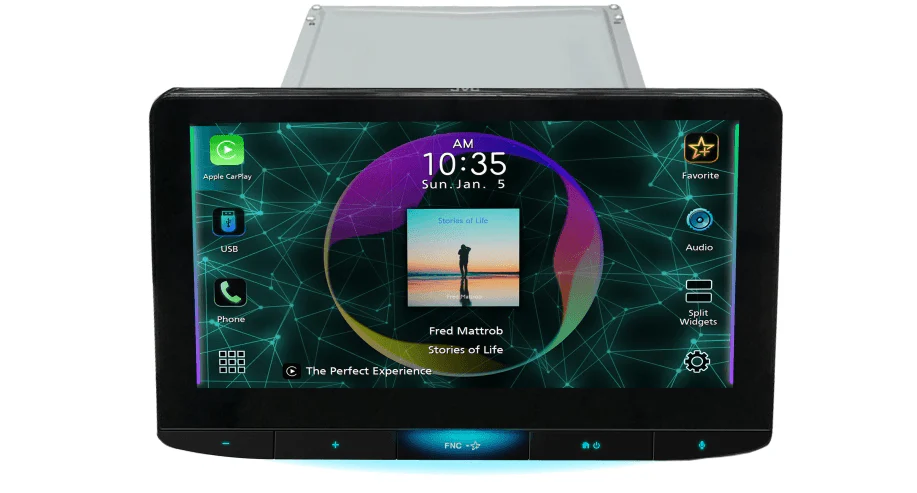

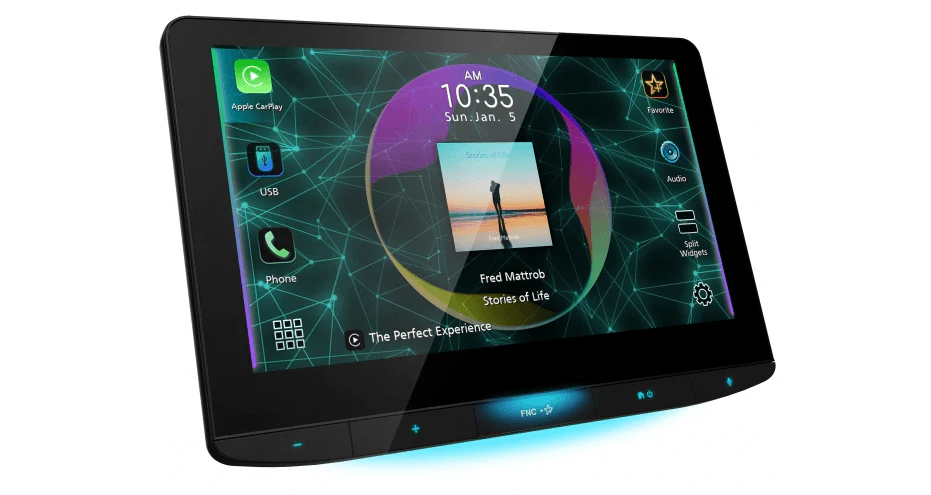

• 10.1" floating capacitive touchscreen display
  • before final installation, depth and height of the display can be adjusted to provide dash vent and control access
• Wi-Fi certified
• Waze-ready with Apple CarPlay or Android Auto
• customizable display background and live wallpaper
• manual tilt angle adjustment for better visibility (-10° - +45°)
• plays high-res FLAC and WAV (up to 24-bit/192 kHz), as well as DSD files on USB drives
• built-in HD Radio tuner

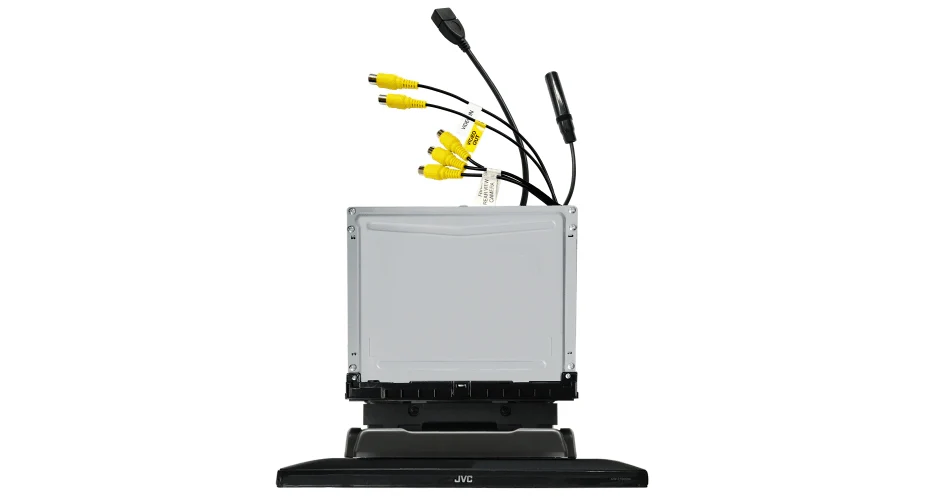

• receiver chassis fits double-DIN dash openings

Smartphone Features:

• compatible with Apple CarPlay or Android Auto (wireless or wired)
• wireless and wired mirroring for Android; wired for iPhone

Bluetooth Features:

• hands-free calling and audio streaming with dual phone connection
• JVC Streaming DJ feature allows music streaming and control from up to five paired smartphones
• built-in LDAC for high-res wireless audio streaming with select Android phones
• control the stereo using JVC's free Remote app

Audio/Video Features:

• plays USB memory devices
• 13-band parametric equalizer with digital time alignment
• K2 technology improves the digital sound for all music sources
• subwoofer level, phase, and low-pass crossover controls

Expandability:

• compatible with SiriusXM satellite radio tuner
• inputs: rear USB input, rear A/V input (mini), rear HDMI input, four camera inputs
• outputs: rear A/V output (mini), 6-channel preamp outputs (5-volt front, rear, subwoofer)

Other Info:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in internal amp (22 watts RMS/50 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
• works with iDataLink Maestro module
  • retains factory features in a wide selection of vehicles
  • displays engine performance and other vehicle data on touchscreen
